Premium Wiring Kit for Stratocaster
Here's what you need for wiring those pickups into your Strat®! All the parts, plus a diagram to show you how.
This premium kit features cloth-covered push-back wire—the right wire for Fender and vintage-style guitar circuitry. The pots in this kit are upgraded to CTS brand for longer life and a smoother, more accurate response.
-

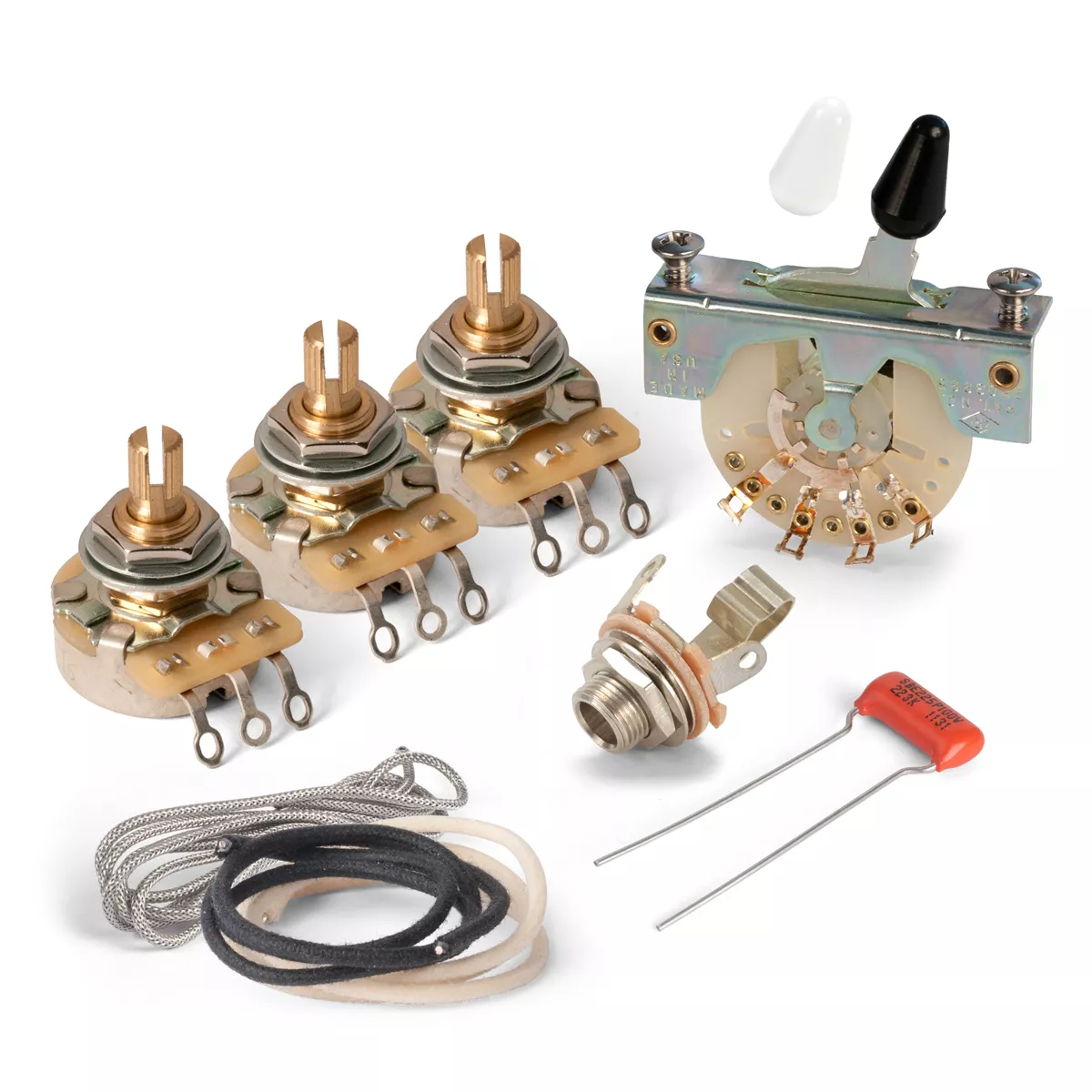

Wiring Kit for Stratocaster includes
- Switchcraft output jack
- 2,0K CTS control pots (3)
- 0.0,047uF Orange Drop Cap
- CRL Lever Switch: 5-way lever switch with mounting screws
- Switch knobs: white and black
- Non-shielded cloth-insulated push-back circuit wire: 22 AWG, white 12" long
- Non-shielded cloth-insulated push-back circuit wire: 22 AWG, black, 24" long
- Shielded braided push-back circuit wire: 22 AWG, 12" long
- Diagramme de câblage
Be sure your control knobs will fit!
CTS pots have a fine-knurled 24-spline split shaft.
| Body cavity depth required | 1-3/8 po (34,93 mm) |
| Mounting screw spacing | 1-5/8 po (41,28 mm) |
| Lever stem | .0,2" x .1,8" (1,32 mm x 4,78 mm) |
| Pickguard slot required | 1/16" x 1-1/16" (1,59 mm x 26,99 mm) |
CTS control pot specifications
| Shaft diameter | 0,235" (5,95 mm) split shaft, fine knurling |
|
| Filetage | 3/8" x 32 | |
| Threaded portion height | 3/8 po | (9,52 mm) |
| Diamètre requis du trou de fixation | 3/8 po | (9,52 mm) |
Stratocaster®, Strat®, and Squier® are registered trademarks of Fender Musical Instruments Corporation.
