Kit de câblage Premium pour Gibson® SG®
This kit makes it easy to order premium components for wiring your SG®, or similar thin-solidbody 4-control / 2-pickup guitar with a 3-way switch.
Complete with wiring diagram, the kit features trusted components used for decades in Gibson® and other iconic American instruments.
-
Premium Wiring Kits feature premium components like
- Switchcraft toggle switch and jack
- CTS potentiometers
- Orange Drop capacitors
- Push-back wire
Be sure your control knobs will fit: CTS pots in these kits have fine-knurled (24-spline) split shafts. Coarse-knurled knobs for imported Alpha pots won't fit. Need knobs? Check here.

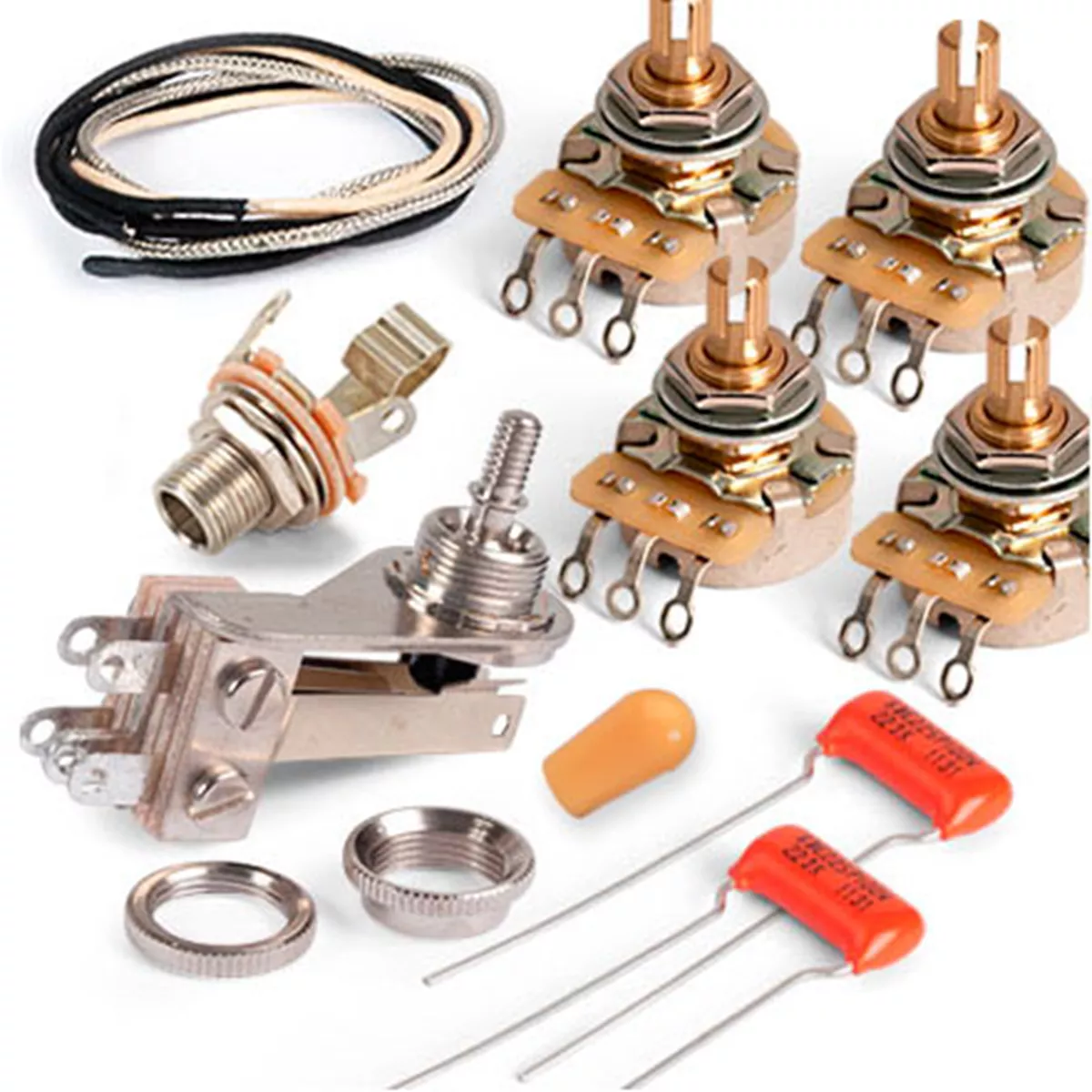

Premium Wiring Kit for Gibson SG includes:| Qty | Item | ||
| 1 | Switchcraft long-thread output jack | ||
| 2 | .0,022uF Condensateurs Orange Drop | ||
| 1 | Switch knob (amber) | ||
| 1 | Switchcraft 3-way right-angle switch | ||
| Switch length | 2 po | (50,80 mm) | |
| Threaded portion | 3/16 po | (4,76 mm) | |
| Diamètre requis du trou de fixation | 1/2 po | (12,70 mm) | |
| Profondeur de cavité requise dans le corps | 13/16 po | (20,64 mm) | |
| Requires at least 1-3/4" (44,45 mm) from the center of the mounting hole to the edge of the control cavity for wiring clearance. | |||
| 4 | CTS 500 kOhm control pots | ||
| Shaft diameter | 0,235" (5,95 mm) split shaft, fine knurling |
||
| Filetage | 3/8" x 32 | ||
| Threaded portion | 3/8 po | (9,52 mm) | |
| Diamètre requis du trou de fixation | 3/8 po | (9,52 mm) | |
| 12 po | Braided-shield push-back guitar circuit wire, 22AWG inner conductor | ||
| 12 po | Non-shielded push-back guitar circuit wire, 22AWG white | ||
| 24 po | Non-shielded push-back guitar circuit wire, 22AWG black | ||
| Diagramme de câblage | |||
SG® est une marque déposée par la Gibson Guitar Corporation.
