Golden Age Pre-wired Harness for Telecaster
Assembled and soldered in the USA using top components like CRL switches and CTS pots for the best sound. Ready to drop into your guitar!
Worth every penny!
- Premium hand-wired for drop-in retrofit
- Upgrade your old wiring
- Save work and save time on new builds
Soldered in our Athens, Ohio shop
We professionally hand-soldered these harnesses using the best brand-name components for long life and great sound: 3-way CRL lever switch, CTS pots, Orange Drop® caps, Switchcraft™ output jack and cloth push-back wire. Bonus: Both black barrel and top-hat switch knobs are included!
Tested and 1,0% Guaranteed

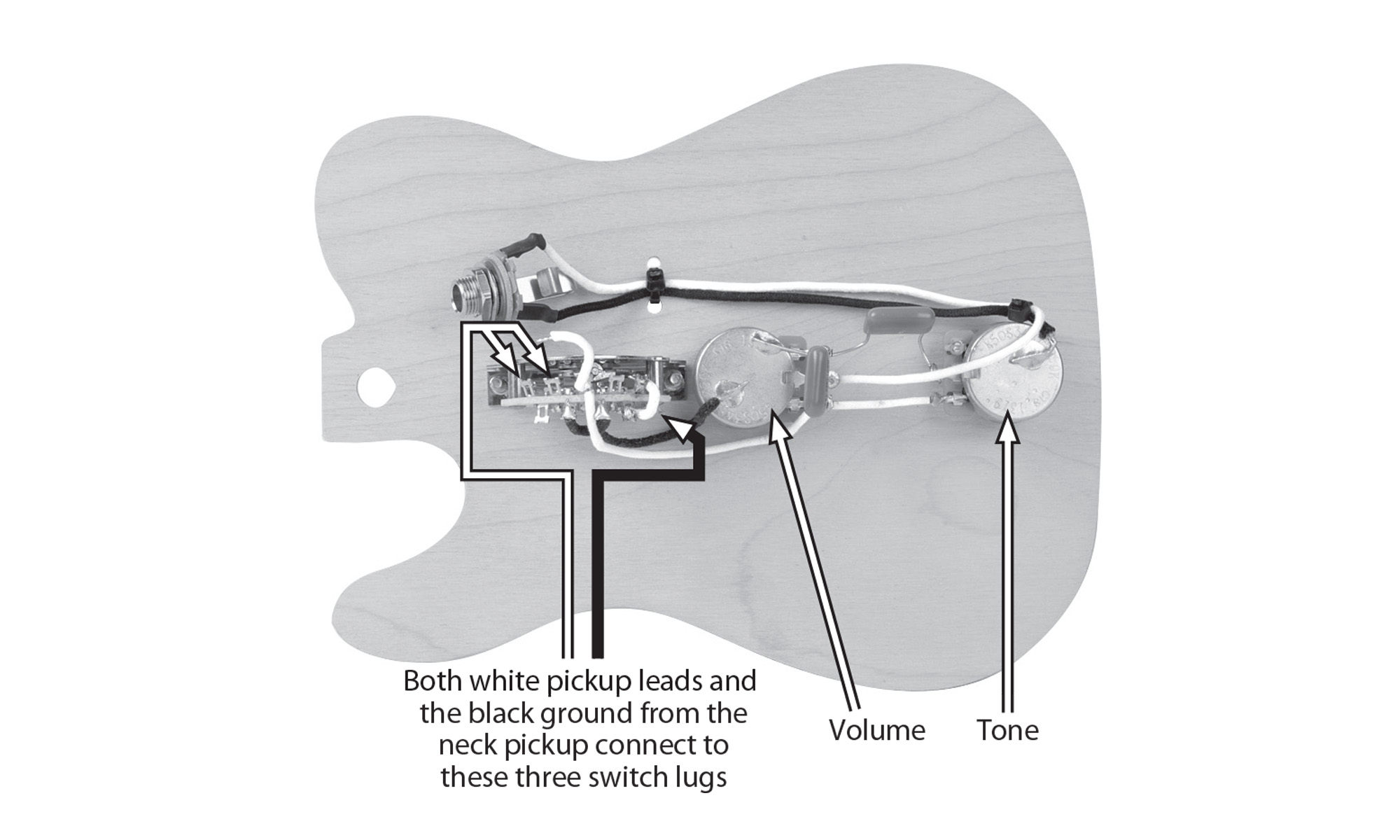

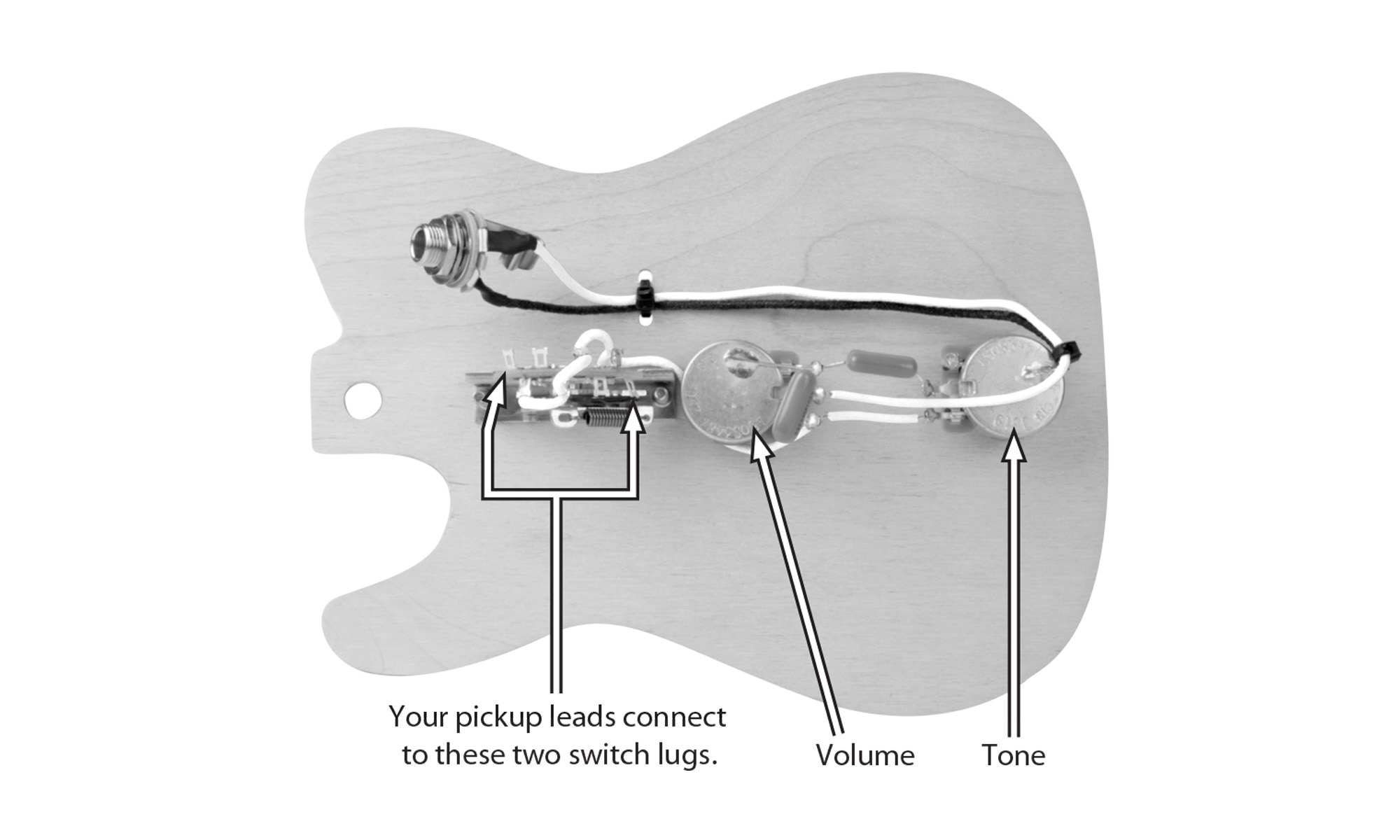

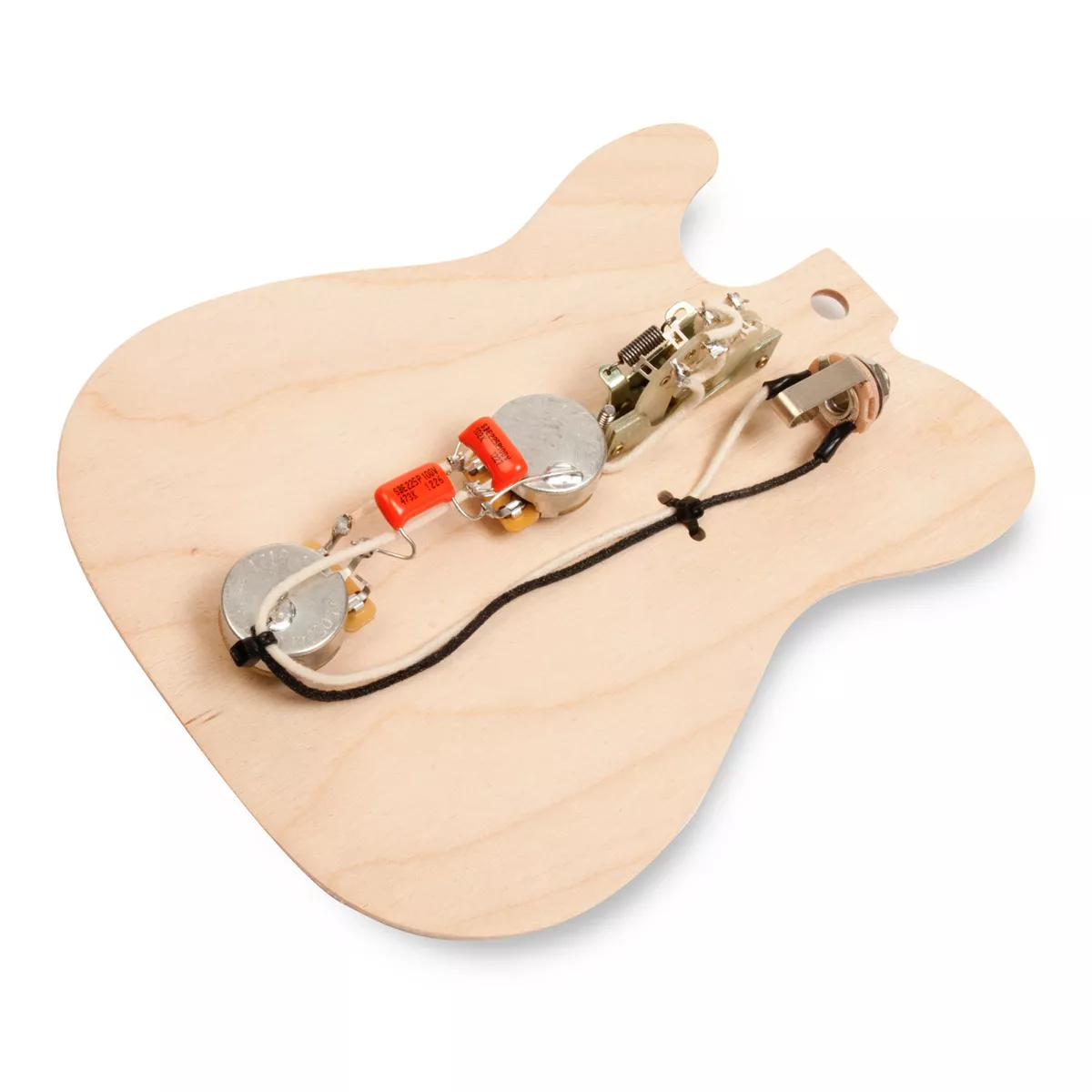

Each Golden Age harness comes to you mounted on a reusable plywood template, which is a tool in itself: save it for future wiring jobs. The template holds the components correctly so the finished harness fits neatly into the guitar's wiring cavity. You simply solder your pickup lead wires to the harness.
Got questions? Call or email us. A friendly gearhead will be happy to help!
3-way CRL Switch Specs
|
|
|
| Body cavity depth required | 1-3/8 po (34,93 mm) |
|
|
|
| Mounting screw spacing | 1-5/8 po (41,28 mm) |
|
|
|
| Lever stem | .0,2" x .1,8" (1,32 mm x 4,78 mm) |
|
|
|
| Pickguard slot required | 1/16" x 1-1/16" (1,59 mm x 26,99 mm) |
|
|
|
CTS Control Pot Specs
|
|
||
| Resistance | 2,0K-ohm | |
|
|
||
| Shaft diameter | 1/4" (6,35 mm) solid shaft (requires a set-screw knob) |
|
|
|
||
| Filetage | 3/8" x 32 | |
|
|
||
| Threaded portion height | 3/8 po | (9,52 mm) |
|
|
||
| Diamètre requis du trou de fixation | 3/8 po | (9,52 mm) |
|
|
||
Orange Drop Capacitor Specs
|
|
|
| Value .0,047uF | Code 4,3K |
|
|
|
| Value .0,001uF | Code 1,2K |
|
|
|
Switchcraft Output Jack Specs
|
|
|
| Accepts standard 1/4" plugs | Mono |
|
|
|
| Mounting hole diameter | 3/8 po (9,52 mm) |
|
|
|
| Filetage | 3/8 x 32 |
|
|
|
| Threaded portion height | 1/4 po (6,35 mm) |
|
|
|
