Golden Age Pre-wired Harness for Gibson® SG®
Assembled and soldered in the USA using top components, including Switchcraft switches and CTS pots for the best sound. Ready to drop into your guitar!
-
Worth every penny!
- Premium hand-wired for drop-in retrofit
- Upgrade your old wiring
- Save work and save time on new builds
Soldered in our Athens, Ohio shop
We professionally hand-soldered these harnesses using the best brand-name components for long life and great sound: CTS pots, Orange Drop® caps, Switchcraft™ toggle switch and output jack and cloth push-back wire.
Tested and 1,0% Guaranteed

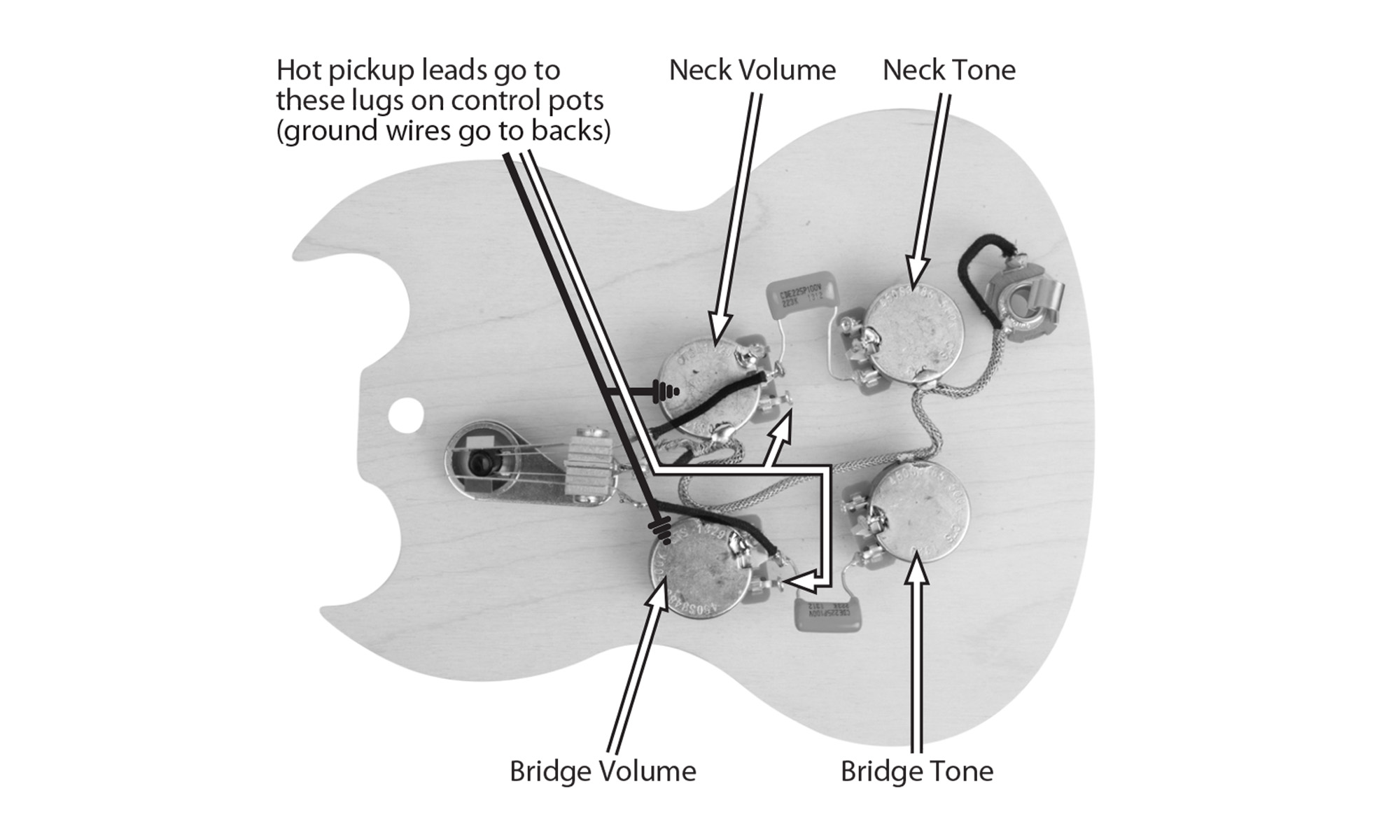

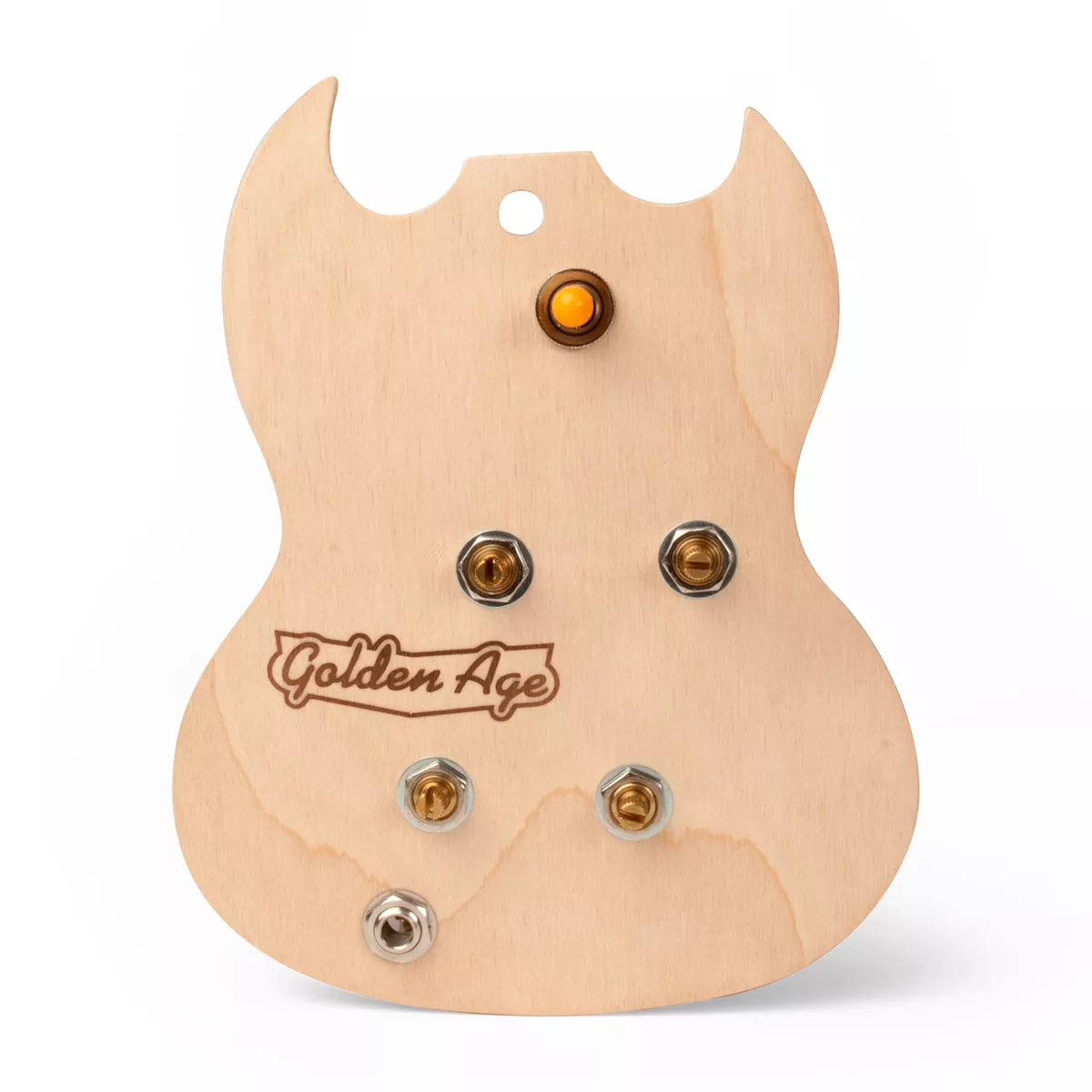

Each Golden Age harness comes to you mounted on a reusable plywood template, which is a tool in itself: save it for future wiring jobs. The template holds the components correctly so the finished harness fits neatly into the guitar's wiring cavity. You simply solder your pickup lead wires to the harness.
Got questions? Call or email us. A friendly gearhead will be happy to help!
| Qty | Specs | |||
| 1 | Switchcraft long-thread output jack | |||
| 2 | .0,022uF Condensateurs Orange Drop | |||
| 1 | Switch knob (amber) | |||
| 1 | Switchcraft 3-way right-angle switch | |||
| Switch length | 2 po | (50,80 mm) | ||
| Threaded portion | 3/16 po | (4,76 mm) | ||
| Diamètre requis du trou de fixation | 1/2 po | (12,70 mm) | ||
| Profondeur de cavité requise dans le corps | 13/16 po | (20,64 mm) | ||
| Requires at least 1-3/4" (44,45 mm) from the center of the mounting hole to the edge of the control cavity for wiring clearance. | ||||
| 4 | CTS 500 kOhm control pots | |||
| Shaft diameter | 0,235" (5,95 mm) split shaft, fine knurling |
|||
| Filetage | 3/8" x 32 | |||
| Threaded portion | 3/8 po | (9,52 mm) | ||
| Diamètre requis du trou de fixation | 3/8 po | (9,52 mm) | ||
